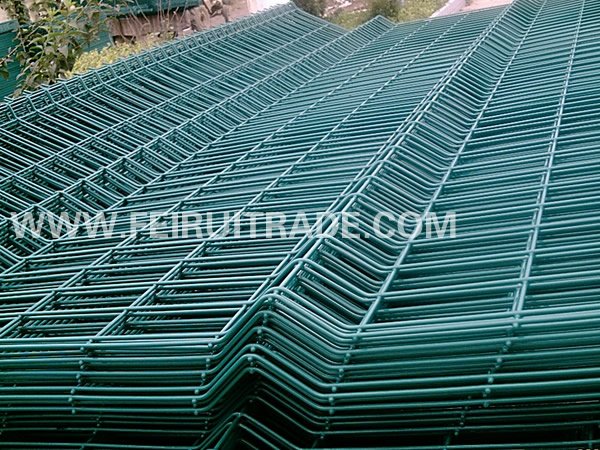

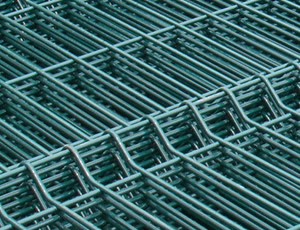

Welded Mesh Panels
· Electrically welded in panel shape
· Galvanized or stainless steel material to resist rust and corrosion
· Uniform mesh & flat surface
· Easy handling, cutting & shearing
· Great versatility and multipurpose
Description
Welded Mesh Panels: BASE MATERIAL
Low Carbon Steel Wire
Stainless steel wire 304, 316
Welded Mesh Panels: FINISH
Hot-dipped zinc coated
Electro zinc coated
PVC coated
Non coated
Welded Mesh Panels: FABRICATED PROCESS
Drawn Wire → Coated → Welded → Edge Cutting → Packing
Drawn Wire → Welded → Coated → Edge Cutting → Packing
Drawn Wire → Welded → Edge Cutting → Packing
Welded Mesh Panels: WIRE DIAMETER
Gauge: BWG4 - BWG27
Metric: 0.5MM - 4.0MM
Welded Mesh Panels: APPLICATIONS
Welded Mesh Panels is also called Galvanized Welded Mesh Panel, it is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Welded Mesh Panels: MESHES
WIRE DIAMETER |
MESH | |
Inch |
MM | |
1.5mm |
1/2" X 1/2" |
12.7mm X 12.7mm |
2mm |
1" X 1" |
25.4mm X 25.4mm |
3mm |
1" X 1" |
25.4mm X 25.4mm |
3mm |
1-1/4" X 1-1/4" |
31.7mm X 31.7mm |
4mm |
1-1/2" X 1-1/2" |
38mm X 38mm |
4mm |
1-1/2" X 1-1/2" |
38mm X 38mm |
4mm |
1-1/2" X 1-1/2" |
38mm X 38mm |
2mm |
2" X 2" |
50.8mm X 50.8mm |
3mm |
2" X 2" |
50.8mm X 50.8mm |
3mm |
2" X 2" |
50.8mm X 50.8mm |
4mm |
2" X 2" |
50.8mm X 50.8mm |
4mm |
2" X 2" |
50.8mm X 50.8mm |
4mm |
2" X 2" |
50.8mm X 50.8mm |
4mm |
2" X 2" |
50.8mm X 50.8mm |
5mm |
2" X 2" |
50.8mm X 50.8mm |
5mm |
2" X 2" |
50.8mm X 50.8mm |
6mm |
4" X 2" |
101.6mm X 50.8mm |
6mm |
4" X 4" |
101.6mm X 101.6mm |
PVC Coated Welded Wire Mesh: PANEL SIZE
Standard: 1m x 2m / 4 x 8
