Razor Wire
Razor barb wire can be used in conjunction with an existing wall or fence, or even installed as a barrier on its own, to create an effective security perimeter.

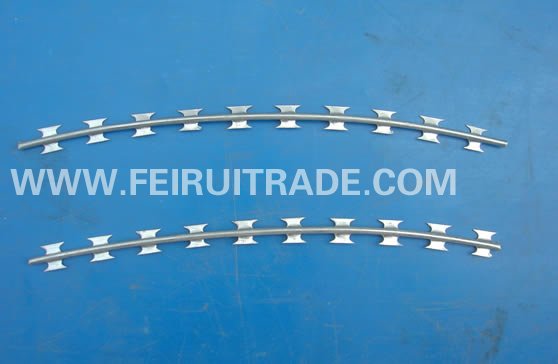

Razor Wire is the galvanized strip combined with the core wire, to form continuous spirals of various diameters, which are then clipped together with heavy duty clips.
These coils are collapsible for transport and then expended and fastened for use.
| Barbed Tape Wire Specification: |
| |
| Barbed Tape Wire Specification |
| Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
| 450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
| 500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
| 700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
| 960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
| 450mm |
56 |
8-9M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 600mm |
56 |
10-11M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
| 980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type | |
| |
|
Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
|
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb
Length |
Barb
Width |
Barb
spacing |
|
BTO-10 |
 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
|
BTO-12 |
 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
BTO-30 |
 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
CBT-60 |
 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 | |
| |
Barbed Tape Concertina (CBT);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request. |
 |
